簡介：可膨脹封隔器技術針對裸眼井多層隔離十分有效。可膨脹封隔器通過吸入流體－油＼水，或者油水混合物，能夠符合各種不規則井況的要求，膨脹倍數可以達到原始尺寸的兩倍。對周圍地層無壓力作用，可防止周圍微型裂紋出現。
Swellable packer technology has been improved to better isolate multiple zones in openhole wells. These packers can conform to very irregular well bores by absorbing well fluids － either oil, water, or both － and swelling to twice their original size. In addition, they prevent micro-fractures around the element by putting almost no stress on the formation. The one drawback to using most swellable packers is the length (sometimes up to 20 ft or 6.1 m) required to achieve the same sealing differential as a conventional packer, which can make them difficult to deploy.

Standard swellable packers may not be as reliable as conventional packers over the long term. As rubber composites swell with fluid, they become spongier: A hardness rating of 80-90 durometers before being run in may drop by almost half after swelling, and over time, packer rubber may extrude and lose its ability to maintain a seal. [Durometer hardness is a measure of the indentation resistance of elastomeric or soft plastic materials based on the depth of penetration of a conical indentor; ASTM D2240 test standard]

To solve the problems of length and durability, Weatherford recently introduced the new Fraxsis annulus swellable packer.  Part of the company’s modular ZoneSelect openhole completion system, the Fraxsis packer incorporates a proprietary metal backup system to achieve a better pressure rating with less than half of the length: Metal “petals” integrated with the rubber element expand as the element expands and lock against the formation. This holds the packer in place and prevents extrusion of the rubber as it becomes softer. As a result, a packer only 7 ft (2.1 m) long can still provide a seal up to 6,000 psi. Shorter length makes the new packer easier to install, more efficient, and less costly ? and it retains the same hole-conformance benefits as traditional swellable packers. Thus far in 2009, the Fraxsis packer has completed more than 75 successful runs in the US and Canada.

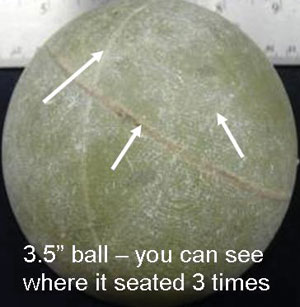

       This engineered composite ball was recovered from a well in Canada. The lines engraved in the ball show that it seated firmly and remained intact.


Swellable packers, however, are just one piece of modular multizone completion design. While the industry as a whole has been slow to adopt modular completion technology, there is real money- and time-savings to be gained, given the increasing complexity of the reservoirs.

Customized approach

It is surprising how many operators still use the old “plug and shoot” approach to multizone wells: cement the liner, run in the gun to perforate the lowest zone, pull out, frac, run in to set a composite bridge plug above that zone, shoot a new zone, and so on.

A more effective approach is to eliminate most trips while ensuring that each zone is optimally isolated and fractured. The design of each zone’s completion should depend on the formation characteristics, hole condition, and whether or not the operator plans to open and close the zone in the future. The ZoneSelect system is designed to allow each zone completion to be customized independently on a single string of tubing.

Selecting the ideal configuration enables optimal diversion of the fracture stimulation ? without the expense of thru-tubing intervention ? and provides life-of-well zonal-isolation potential. Since its launch in late 2008, the system has been used to isolate more than 750 zones in the US and Canada.

To give engineers maximum design flexibility, the system includes four isolation methods and three frac distribution sleeves, all with mix-and-match interconnectivity.

Options for isolation include the Fraxsis swellable packer plus traditional hydraulically set packers, high-pressure inflatable packers, and cementation.

The most common sleeve option for controlling access to the frac zone is the single-shot: Sleeves are opened from the bottom up by successively larger balls: After a ball opens a particular sleeve, it lands above the previous sleeve and seals off the previous zone. After being opened, each sleeve remains open permanently. At the end of the frac job, the balls are produced out of the hole and the ball seats are milled out of the tubing. This inexpensive approach can be used for up to 16 zones (with the capability to do as many 22) where future zonal isolation is not anticipated.

The second approach a multishift sleeve, also good for up to 22 zones. The multishift sleeve works in the same ball-drop manner as the single-shot, but it also features a secondary open/close capability: A shifting tool run in on tubing can be used later to close or reopen sleeves to optimize production. A patented shock absorber built into the multishift system maintains the integrity of the sleeve as both a frac diverter and zonal-isolation device. Because the opened sleeve may later need to be shifted closed, damage from the ball hitting and knocking down the sleeve is a concern; the shock absorber helps eliminate this concern.

The third, less common, approach is the monobore frac sleeve. It is typically used when the isolation zone must be cemented to compensate for unconsolidated formations or for high temperatures that would degrade a packer. Cement precludes the use of ball-drop sleeves (single-shot or multishift) because the dart that cleans cement from the inside of the bore would trip the sleeves. The advantage of monobore is that there are no ball seats to mill out, and because there are no ball seats, zones can be treated in any sequence. The disadvantage is that running the shifting tool in and out for each zone takes rig time.

Customized multizone frac systems can substantially reduce the rig time normally required to isolate and stimulate multiple zones. For instance, in the heel of a horizontal well, the operator may choose to install a swellable packer to deal with a washed out well bore, plus a multishift frac system to shut off water production in the future. Closer to the toe where zonal isolation isn’t likely to be an issue, they may prefer a hydraulic packer and single-shot sleeve system.

Maintaining pressure

       The Fraxsis annulus swellable packer incorporates patented metal reinforcement that enables it to hold up to 6,000 psi in lengths of only 7 ft (2.1 m).


One innovation that markedly enhances the effectiveness of the system is a new engineered composite ball, exclusive to Weatherford. These balls can hit the ball seat at very high flow rates without shattering, then seat firmly, hold 10,000 psi, and flow back out of the well without sticking. Standard balls often shatter on impact, and the only thing field personnel can do is drop another ball.

An option on all sleeves is the patented outer composite sleeve, which prevents damage to the seal surfaces of the sleeve from formation debris during run-in or from cement contamination. When the frac sleeve is shifted open, the pressure pulse from the fracture disintegrates the protective sleeve, made of the same materials as the composite bridge plugs.

Marcellus case history

A major operator in northeast Pennsylvania was planning to fracture nine zones in a Marcellus shale well 10,235 ft (3,121 m) deep. In the past they had employed the “plug and shoot” method but were now seeking a more streamlined approach to multizone stimulation. The first attempts involved conventional 10-ft (3-m) inflatable packers, but the operator had trouble getting these long packers down the hole.

For this well, they chose the 7-ft Fraxsis swellable packer and the ZoneSelect single-shot fracturing sleeve for all nine zones. They had no problems running in the string. And with every ball-drop, they could follow the pressure rise to see exactly when the ball hit, when the sleeve sheared open, and when the frac started. This was made possible by the resilience of the engineered composite ball ? and they had not been able to see this previously with conventional balls, where many zones required more than one ball-drop.

Each zone was fractured without any issues, and at the end, the cast-iron ball seats were milled out in an average of only 5 min/seat. Overall, the operator estimates that this modular system saved them two full days of rig time ? not including the time they had previously spent dealing with hang-ups caused by the 10-ft inflatable packers.
